ViewSat 9000 hd

The long anticipated VIEWSAT 9000 hd is finally here! It took us a little longer to release the PVR than we anticipated. We wanted to make sure that the customer would be getting a high quality product. This is a dual tuner PVR! Any standard IDE hard drive can be easily installed through the front access panel. This new addition to the Viewsat product line is sure to be a winner.

Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
160 MHz ST Processor
2 Tuners
Watch and record
Dual recording
Time-shifting
Front panel easy hard drive access (hard drive not included)
Compatible with up to 2000 Gig hard drive!!!
Front panel card reader (X Crypt Conditional Access System)
MP3 (MPEG-1 Layer3) decoding
Powerful trick mode supported
Playback of the selected region repeatedly
Front Panel USB 2.0 supported for fast PC interface
Dual Decoding (PIP-Picture in Picture)
160MHz ST processor
Set to Set Download (Main Program, Channel Data)
Input Frequency 950 ~2150MHz
4:3, 16:9 Letter Box
22KHz Switching Control
Various LNB Polarity Control
Supports Electronic Program Guide (EPG), Picture in Graphic (PIG)
Supports SCPC & MCPC from C / Ku-band
Fast Booting & Auto Scan
Quick Channel Changing
Max 8000 Channels (TV & Radio) Programmable
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Favorite Channel List editing
Master PIN Code Function & Parental Lock Function
Optical Output for Digital Audio
Window based S/W Download Program Supported by RS232 Serial Port
S-VIDEO Output
RF-Modulator Output
Power Switch
S/PDIF Output for Digital Audio
9 RCA Output for Video (Twin), Audio L/R (Twin), Component
Zoom function
Hardware based Blind Scan
DiSEqC 1.0, 1.1, 1.2 and USALS (1.3) Compatible
Photo Album
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A

Remote Controls. Email to friends Share on Facebook - opens in a new window or tab Share on Twitter - opens in a new window or tab Share on Pinterest. Universal Remote Control Smart Card Reader (Option) Coolsat 4x1 DiseqC 1.2 Switch. Coolsat® Ku-Band LNBL and LNBC. The Coolsat Card Reader is the wave of the Future. The VIEWSAT ULTRA is our most powerful and exciting Free To Air Receiver yet! We’ve added a faster processor (200 MHz), double the memory of the Xtreme (32 Mb.


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)

Viewsat 7000, Viewsat pvr, free to air satellite receiver, Viewsat 7000 pvr

MPEG 2 & MPEG 4 Support High Definition (ATSC Only)
Digital Terrestrial(ATSC) & Satellite Set-Top-Box(TS combo)
Multiple Video Outputs HDMI, RGB, Ypbr, S-Video & CVBS
Seletable output for 1080i, 720P, 576P and 576i format
Tunes & Decodes all 18 ATSC broadcast formats
Dolby Digital(AC3) 5.1 Channel Surround Sound via optical
Aspect ratio adjustment 4:3 (16/9 crop), 4:3 (16/9 letterbox), 16:9 (4/3 pillar box)
Multi-Lingual audio & digital closed caption support
User friendly OSD and operation.
Favorite channel selections.
S/W upgrade through RS-232
Parental Guide and rating control.
Picture in Picture support (Aux input/optional) (Option)
Electronic Program Guide.
DiSEqC 1.0 & or DiSEqC 1.2
Flash memory 4MB
DDR RAM 128MB (DDR400 16MX16) X 4ea
Universal Remote Control

Viewsat Remote Codes

Mpeg-2 Digital and Full DVB Compliant
On-Screen Display with 256-Color Full Resolution
Blind Search [Power Scan]
DISEqC Control Version 1.0,1.2 and USALS compatible
Renameable 8 Favorite Channel Groups
Powerful Channer Control by Favorites, Lock, Skip, Move and Delete
Channel Sorting by Alphabet, Transponder and CAS
10 Languages(OSG & Menu) : English, Spanish, Portuguese, French, German, Itallian, Turkish, Arabic, Parsi and Russian
Extended EPG and Program Reservation through EPG
Teletext Support (OSD and VBI Insertion)
Last Channel Memory Function
Total 5,000 Channels Programmable
Pre-Installed Channels (Option)
Multi-Satellite Search
Various Games with Stereo Sound
CVBS Video & Audio Output via RCA
Component Y/Pb/Pr Output
S-VHS Video Output
Dolby Digital bitstream audio output via S/PDIF
Software & Channel Database Upgrade via RS-232
Multi-picture Display
Zoom Function in Pause
Parental Lock / Installation Lock/ Receiver Lock
Universal Remote Control
Smart Card Reader (Option)
SD RAM : 32MB
Smart Card Reader (Option)

Mpeg-2 Digital and Full DVB Compliant
On-Screen Display with 256-Color Full Resolution
Blind Search [Power Scan]
DISEqC Control Version 1.0,1.2 and USALS compatible
Renameable 8 Favorite Channel Groups
Powerful Channer Control by Favorites, Lock, Skip, Move and Delete
Channel Sorting by Alphabet, Transponder and CAS
10 Languages(OSG & Menu) : English, Spanish, Portuguese, French, German, Itallian, Turkish, Arabic, Parsi and Russian
Extended EPG and Program Reservation through EPG
Teletext Support (OSD and VBI Insertion)
Last Channel Memory Function
Total 5,000 Channels Programmable
Pre-Installed Channels (Option)
Multi-Satellite Search
Various Games with Stereo Sound
CVBS Video & Audio Output via RCA
Component Y/Pb/Pr Output
S-VHS Video Output
Dolby Digital bitstream audio output via S/PDIF
Software & Channel Database Upgrade via RS-232
Multi-picture Display
Zoom Function in Pause
Parental Lock / Installation Lock/ Receiver Lock
Universal Remote Control
Smart Card Reader (Option)

Coolsat 4x1 DiseqC 1.2 Switch

Coolsat® Ku-Band LNBL and LNBC

The Coolsat Card Reader is the wave of the Future.

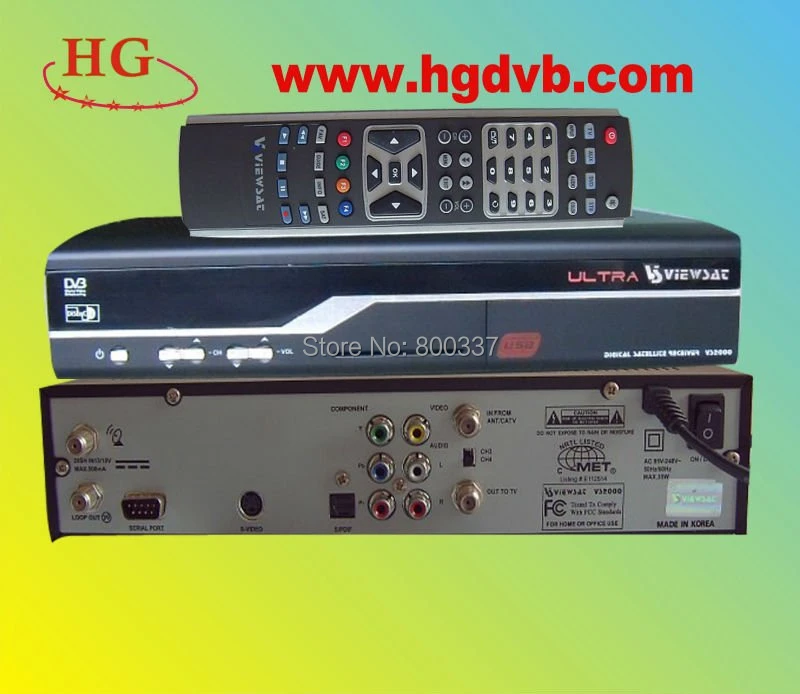

The VIEWSAT ULTRA is our most powerful and exciting Free To Air Receiver yet!. We’ve added a faster processor (200 MHz), double the memory of the Xtreme (32 Mb SD RAM), and a USB communications port for easy data updates. Now you can use your USB flash drive to update your receiver. The new universal remote that comes with this unit is awesome. If that's not enough, wait until you see the new colorful Graphic User Interface. This is by far the best FTA STB the market has ever seen.

Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
Input Frequency 950-2150MHz
200 MHz Connexant Processor
32 Mb SD RAM
Supports 7 Day EPG (Electronic Program Guide)
Supports PIG (Picture in Graphic)
Supports SCPC & MCPC from C / Ku-band
1 LNB Input Tuner with Loop Through IF Signal
Tuner Symbol Rate: 1-45MS/s
New Universal Remote Control
Card Reader (X Crypt Conditional Access System)
Fast Booting & Auto Scan
Hardware Driven Blindscan
4000 Channel Programmable (TV & Radio
Fast Channel Changing
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Radio Channel Screen Saver
Favorite Channel List Programmable
Master PIN Code Function & Parental Lock Function
100 Step Volume Control
Automatic Detection of Forward Error Correction
USB Host Interface (Only for USB Memory Stick)
S/W Upgrade Supported by USB Port
Window Based S/W Download Program Supported by RS232 Serial Port
Set to Set Download (Main Program, Channel Data)
4:3, 16:9 Letter Box & Teletext using OSD
7 Segment-4 Digit Display
5 Keys on Front Panel
(Power On/Off, Channel Up/Down, Volume Up/Down)
Various LNB Polarity Control
22 KHz Switching Control
Optical Output for Digital Audio
S-VIDEO Output
3 RCA outputs (2 Audio L/R and 1 Video)
3 RCA Video Component Outputs (RGB
RF-Modulator Output
Rear Power Switch
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)

Manual


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz

Audio/Video Output
Audio Output: 2 RCA Cinch (1 on LIte Model)
Video Output: 2 RCA Cinch (1 on Lite Model)
Digital Audio: 1 S/PDIF Optical (Platinum & Xtreme)
S-Video: 1 S-VIDEO
COMPONENT: 3 RCA Cinch (Xtreme)


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)


--------------------------------------------------------------------------------

The Viewsat Platinum Lite was developed to meet the demand for a lower priced unit with the same power as the Viewsat Platinum. In order to accomplish this, we took the Viewsat Platinum and trimmed the fat. The Lite does not include a card reader or Dolby output. Standard remote included. The Lite also has one set of composite outputs. Other than that, it is just as user friendly and powerful as it's big brother, the Viewsat Platinum. Check with your dealer for pricing. This unit uses Platinum firmware.

Note: See Platinum for specs.


--------------------------------------------------------------------------------

The long anticipated VIEWSAT PVR 7000 is finally here! It took us a little longer to release the PVR than we anticipated. We wanted to make sure that the customer would be getting a high quality product. This is a dual tuner PVR! Any standard IDE hard drive can be easily installed through the front access panel. This new addition to the Viewsat product line is sure to be a winner.

Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
160 MHz ST Processor
2 Tuners
Watch and record
Dual recording
Time-shifting
Front panel easy hard drive access (hard drive not included)
Compatible with up to 2000 Gig hard drive!!!
Front panel card reader (X Crypt Conditional Access System)
MP3 (MPEG-1 Layer3) decoding
Powerful trick mode supported
Playback of the selected region repeatedly
Front Panel USB 2.0 supported for fast PC interface
Dual Decoding (PIP-Picture in Picture)
160MHz ST processor
Set to Set Download (Main Program, Channel Data)
Input Frequency 950 ~2150MHz
4:3, 16:9 Letter Box
22KHz Switching Control
Various LNB Polarity Control
Supports Electronic Program Guide (EPG), Picture in Graphic (PIG)
Supports SCPC & MCPC from C / Ku-band
Fast Booting & Auto Scan
Quick Channel Changing
Max 8000 Channels (TV & Radio) Programmable
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Favorite Channel List editing
Master PIN Code Function & Parental Lock Function
Optical Output for Digital Audio
Window based S/W Download Program Supported by RS232 Serial Port
S-VIDEO Output
RF-Modulator Output
Power Switch
S/PDIF Output for Digital Audio
9 RCA Output for Video (Twin), Audio L/R (Twin), Component
Zoom function
Hardware based Blind Scan
DiSEqC 1.0, 1.1, 1.2 and USALS (1.3) Compatible
Photo Album
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)


--------------------------------------------------------------------------------

The Viewsat Xtreme has all of the same features and technical specs as the Platinum model below plus TRUE HARDWARE BLINDSCAN and COMPONENT VIDEO OUTPUTS! If you are serious about your FTA, then you will want this new model.
--------------------------------------------------------------------------------

(Firmware Blindscan)

The Viewsat Platinum is the Viewsat Lites big brother. This Free To Air satellite receiver includes a card reader and an fiber optic audio output. This STB also includes a universal remote.
See the specs below.


Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
160 MHz Connexant Processor
16 Mb SD Ram
Input Frequency 950-2150MHz
Supports EPG, PIG
Supports SCPC & MCPC from C / Ku-band
1 LNB Input Tuner with Loop Through IF Signal
Tuner Symbol Rate : 1-45MS/s
Front panel card reader (X Crypt Conditional Access System)
Fast Booting & Auto Scan
Quick Channel Changing
Max. 4000 Channels (TV & Radio) Programmable
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Radio Channel Background Display
Favorite Channel List Programmable
Master PIN Code Function & Parental Lock Function
Universal Remote (Platinum & Xtreme)
100 Steps Volume Control
Automatic Detection of Forward Error Correction
Window based S/W Download Program Supported by RS232 Serial Port
Set to Set Download (Main Program, Channel Data)
4:3, 16:9 Letter Box & Teletext using OSD
7 Segment-4 Digit Display
5 Keys on the Front Panel (Power On/Off, Channel
Up/Down, Volume Up/Down)
Various LNB Polarity Control
22KHz Switching Control
6 RCA Output for Video, Audio L/R
Optical Output for Digital Audio (Platinum & Xtreme)
S-VIDEO Output
RF-Modulator Output
Power Switch
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz

Audio/Video Output
Audio Output: 2 RCA Cinch (1 on LIte Model)
Video Output: 2 RCA Cinch (1 on Lite Model)
Digital Audio: 1 S/PDIF Optical (Platinum & Xtreme)
S-Video: 1 S-VIDEO
COMPONENT: 3 RCA Cinch (Xtreme)


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)

Slim Size, Low Heat, Low Power, Low Noise , Light Weight
• Soft&Stable Forward and Backward in Various speed
• Easy & Simple data transfer(PVR HDD<->PC)
• Front Cartridge Type (2.5' HDD)
• Fast Cutting of the recorded memory
• Power Scan:Fully Automated Satellite Scanning
• 10,000 Channels TV& Radio Programmable
• Multi Windows (4,9,16 pictures)
• 2 Tuner Inputs
• 100 Satellite, 10,000 channels programmable
• 2 Common Interface Slots
• Real Time Clock
• USB V 2.0
• PIG / PIP
• Smart Search
• 60GB Mini Removable HDD (36 Hours of Recording)
• Conax Embedded Card Reader

General Features
- EPG (Electronic Program Guide)
- Full Compliant of MPEG-2 Digital & DVB broadcasting
- 950 - 2,150 MHz input Frequency (IF Loop Throughout)
- Variable Input Symbol Rate (1-45 Msps)
- Multi Language OSD
- Automatic PAL/NTSC Conversion
- Fast Channel Change
- 5,000 Channels TV & Radio Program
- Universal Remote
- Flexible reception of SCPC & MCPC from C/Ku-Band Satellites
- S/PDIF (Digital Audio or Dolby AC3 Stream out)
- Timer Function (Automatic Turn On/Off by Setting Function)
- 256 Colors (Graphic User Interface) Number
- PIG (Picutre in Graphic)
- 5 Favorite List & Unlimited Programs per each
- Powerful Channel Editing Function
- Sorting: Alphabetic, Satellite, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip
- Manual PID / Satellite & TP / Network Scan
- Smart Search
- Satellite Scan - Simultaneous Scan with 4 Satellites
- DiSEqC 1.3 Control Compatible (STAB USALS)
- Capable of Setting the Frequency for SMATV System
- Software Upgrade via RS-232C (Receiver to Receiver, PC to Receiver)

EPG (Electronic Program Guide)

• Full Compliant of MPEG-2 Digital & DVB broadcasting

• 950-2,150 MHz input Frequency (IF Loop Throughout)

• Variable Input Symbol Rate (1-45 Msps)

• Multi Language OSD

• Automatic PAL/NTSC Conversion

• Fast Channel Change

• 5,000 Channels TV & Radio Program

• Universal Remote Ready

• Flexible reception of SCPC & MCPC from C/Ku-Band Satellites

• S/PDIF (Digital Audio or Dolby AC3 Stream out)

• Timer Function (Automatic Turn On/Off by Setting Function)

• 256 Colors (Graphic User Interface) Number

• PIG (Picture In Graphic)

• 5 Favorite List & Unlimited Programs per each

• Powerful Channel Editing Function
- Sorting : Alphabetic, Satellite, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip

• Manual PID / Satellite & TP / Network Scan

• Smart Search

• Satellite Scan – Simultaneous Scan with 4 Satellites

• DiSEqC 1.3 Control Compatible (STAB USALS)

• Capable of Setting the Frequency for SMATV System

• Software Upgrade via RS-232C (Receiver to Receiver, PC to Receiver)

Basic Feature
Smart Search
Satellite Scan - Simultaneous Scan with 4 Satellites
5000 Channels TV & Radio program (TV Ch. 4,000, Radio Ch. 1,000)
5 Favorite List
2 Days EPG (Electronic Program Guide)
Full Compliant of MPEG-2 Digital & DVB broadcasting
950-2, 150 MHz input Frequency (IF Loop Throughout)
Variable Input Symbol Rate (1-45 Msps)
Multi language OSD
Automatic PAL/NTSC Conversion
Flexible receiption of SCPC & MCPC from C/Ku-Band Satellites
S/PDIF (Digital Audio or Dolby AC3 Stream out)
Timer Function (Automatic Turn On/ Off by Setting Function)
Component (Y/ Pb/ Pr) Video Output
S-Video
256 Colors (Graphic User Interface) Number
PIG (Picture In Graphic)
Powerful Channel Editing Function
- Sorting: Alphabetic, Satellite, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip
Manual PID/ Satellite & TP/ Network Scan
Diseqc 1.2 & USALS Compatiable
Comparable of Setting the Frequency for SMATV System
Software Upgrade via RS-232C (Receiver to Receiver, PC to Receiver), Null Modem Cable
UHF Ready

Features

MPEG-? Digital & Fully DVB Compliant
Auto DiSEqC Scan
DiSEqC Control 1.0, 1.2 compatible
Simple Satellite Scan
Fast Multi-Satellite Search
Blind Search (Power Scan) & Network Scan
4, 13 Multi-Picture Screen
3200 Channels Programmable
Fast OSD Respond
User Friendly OSD (On Screen Display) with 256 Color & Easy GUI
Channel Sorting by Alphabet, Transponder
Channel Control by Delete, Skip, Lock, Move and Favorites
Powerful EPG Support
Zoom function
Parental Lock / Installation Lock / Receiver Lock
Various Languages (OSD & Menu)
English, Spanish, French, German l
Background changing function by User with supported program
Software & Channel Database Upgrade via by RS232 Port
Set to Set Download (Main s/w, Channel Data, etc.)
Quick Channel Changing
Favorite Channel List Programmable
Games
Smart Card Reader Interface (Optional)
Universal Remote Control (Optional)

Features

SW Upgradeable via INTERNET or RS-232C cable
MPEG-II Digital & Fully DVB Compliant
Auto Diseqc Scan
DiSEqC Control 1.0, 1.2 compatible
Simple Satellite Scan
Fast Multi-Satellite Search
Blind Search
4, 13 Multi-Picture Screen
3200 Channels Programmable
Fast OSD Respond.
OSD (On Screen Display) with 256 Color
Channel Sorting by Alphabet, Transponder and CAS
Channel Control by Delete, Skip, Lock, Move and Favorites.
Teletext Support
Zoom Function
Parental Lock/ Installation Lock/ Receiver Lock
Various Languages (OSD & Menu)
English, Spanish, French, German
Xcrypt software support
Powerful EPG
TP CH auto update

Copyright © 2000-2008

Viewsat Ultra vs2000

The VIEWSAT ULTRA is our most powerful and exciting Free To Air Receiver yet!. We’ve added a faster processor (200 MHz), double the memory of the Xtreme (32 Mb SD RAM), and a USB communications port for easy data updates. Now you can use your USB flash drive to update your receiver. The new universal remote that comes with this unit is awesome. If that's not enough, wait until you see the new colorful Graphic User Interface. This is by far the best FTA STB the market has ever seen.

Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
Input Frequency 950-2150MHz
200 MHz Connexant Processor
32 Mb SD RAM
Supports 7 Day EPG (Electronic Program Guide)
Supports PIG (Picture in Graphic)
Supports SCPC & MCPC from C / Ku-band
1 LNB Input Tuner with Loop Through IF Signal
Tuner Symbol Rate: 1-45MS/s
New Universal Remote Control
Card Reader (X Crypt Conditional Access System)
Fast Booting & Auto Scan
Hardware Driven Blindscan
4000 Channel Programmable (TV & Radio
Fast Channel Changing
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Radio Channel Screen Saver
Favorite Channel List Programmable
Master PIN Code Function & Parental Lock Function
100 Step Volume Control
Automatic Detection of Forward Error Correction
USB Host Interface (Only for USB Memory Stick)
S/W Upgrade Supported by USB Port
Window Based S/W Download Program Supported by RS232 Serial Port
Set to Set Download (Main Program, Channel Data)
4:3, 16:9 Letter Box & Teletext using OSD
7 Segment-4 Digit Display
5 Keys on Front Panel
(Power On/Off, Channel Up/Down, Volume Up/Down)
Various LNB Polarity Control
22 KHz Switching Control
Optical Output for Digital Audio
S-VIDEO Output
3 RCA outputs (2 Audio L/R and 1 Video)
3 RCA Video Component Outputs (RGB
RF-Modulator Output
Rear Power Switch
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz

Audio/Video Output
Audio Output: 2 RCA Cinch (1 on LIte Model)
Video Output: 2 RCA Cinch (1 on Lite Model)
Digital Audio: 1 S/PDIF Optical (Platinum & Xtreme)
S-Video: 1 S-VIDEO
COMPONENT: 3 RCA Cinch (Xtreme)


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)

Viewsat Ultra, Viewsat vs 2000, free to air satellite receiver, Viewsat Ultra vs2000

MPEG 2 & MPEG 4 Support High Definition (ATSC Only)
Digital Terrestrial(ATSC) & Satellite Set-Top-Box(TS combo)
Multiple Video Outputs HDMI, RGB, Ypbr, S-Video & CVBS
Seletable output for 1080i, 720P, 576P and 576i format
Tunes & Decodes all 18 ATSC broadcast formats
Dolby Digital(AC3) 5.1 Channel Surround Sound via optical
Aspect ratio adjustment 4:3 (16/9 crop), 4:3 (16/9 letterbox), 16:9 (4/3 pillar box)
Multi-Lingual audio & digital closed caption support
User friendly OSD and operation.
Favorite channel selections.
S/W upgrade through RS-232
Parental Guide and rating control.
Picture in Picture support (Aux input/optional) (Option)
Electronic Program Guide.
DiSEqC 1.0 & or DiSEqC 1.2
Flash memory 4MB
DDR RAM 128MB (DDR400 16MX16) X 4ea
Universal Remote Control

Mpeg-2 Digital and Full DVB Compliant
On-Screen Display with 256-Color Full Resolution
Blind Search [Power Scan]
DISEqC Control Version 1.0,1.2 and USALS compatible
Renameable 8 Favorite Channel Groups
Powerful Channer Control by Favorites, Lock, Skip, Move and Delete
Channel Sorting by Alphabet, Transponder and CAS
10 Languages(OSG & Menu) : English, Spanish, Portuguese, French, German, Itallian, Turkish, Arabic, Parsi and Russian
Extended EPG and Program Reservation through EPG
Teletext Support (OSD and VBI Insertion)
Last Channel Memory Function
Total 5,000 Channels Programmable
Pre-Installed Channels (Option)
Multi-Satellite Search
Various Games with Stereo Sound
CVBS Video & Audio Output via RCA
Component Y/Pb/Pr Output
S-VHS Video Output
Dolby Digital bitstream audio output via S/PDIF
Software & Channel Database Upgrade via RS-232
Multi-picture Display
Zoom Function in Pause
Parental Lock / Installation Lock/ Receiver Lock
Universal Remote Control
Smart Card Reader (Option)
SD RAM : 32MB
Smart Card Reader (Option)

Mpeg-2 Digital and Full DVB Compliant
On-Screen Display with 256-Color Full Resolution
Blind Search [Power Scan]
DISEqC Control Version 1.0,1.2 and USALS compatible
Renameable 8 Favorite Channel Groups
Powerful Channer Control by Favorites, Lock, Skip, Move and Delete
Channel Sorting by Alphabet, Transponder and CAS
10 Languages(OSG & Menu) : English, Spanish, Portuguese, French, German, Itallian, Turkish, Arabic, Parsi and Russian
Extended EPG and Program Reservation through EPG
Teletext Support (OSD and VBI Insertion)
Last Channel Memory Function
Total 5,000 Channels Programmable
Pre-Installed Channels (Option)
Multi-Satellite Search
Various Games with Stereo Sound
CVBS Video & Audio Output via RCA
Component Y/Pb/Pr Output
S-VHS Video Output
Dolby Digital bitstream audio output via S/PDIF
Software & Channel Database Upgrade via RS-232
Multi-picture Display
Zoom Function in Pause
Parental Lock / Installation Lock/ Receiver Lock
Universal Remote Control
Smart Card Reader (Option)

Coolsat 4x1 DiseqC 1.2 Switch

Coolsat® Ku-Band LNBL and LNBC

The Coolsat Card Reader is the wave of the Future.

The VIEWSAT ULTRA is our most powerful and exciting Free To Air Receiver yet!. We’ve added a faster processor (200 MHz), double the memory of the Xtreme (32 Mb SD RAM), and a USB communications port for easy data updates. Now you can use your USB flash drive to update your receiver. The new universal remote that comes with this unit is awesome. If that's not enough, wait until you see the new colorful Graphic User Interface. This is by far the best FTA STB the market has ever seen.

Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
Input Frequency 950-2150MHz
200 MHz Connexant Processor
32 Mb SD RAM
Supports 7 Day EPG (Electronic Program Guide)
Supports PIG (Picture in Graphic)
Supports SCPC & MCPC from C / Ku-band
1 LNB Input Tuner with Loop Through IF Signal
Tuner Symbol Rate: 1-45MS/s
New Universal Remote Control
Card Reader (X Crypt Conditional Access System)
Fast Booting & Auto Scan
Hardware Driven Blindscan
4000 Channel Programmable (TV & Radio
Fast Channel Changing
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Radio Channel Screen Saver
Favorite Channel List Programmable
Master PIN Code Function & Parental Lock Function
100 Step Volume Control
Automatic Detection of Forward Error Correction
USB Host Interface (Only for USB Memory Stick)
S/W Upgrade Supported by USB Port
Window Based S/W Download Program Supported by RS232 Serial Port
Set to Set Download (Main Program, Channel Data)
4:3, 16:9 Letter Box & Teletext using OSD
7 Segment-4 Digit Display
5 Keys on Front Panel
(Power On/Off, Channel Up/Down, Volume Up/Down)
Various LNB Polarity Control
22 KHz Switching Control
Optical Output for Digital Audio
S-VIDEO Output
3 RCA outputs (2 Audio L/R and 1 Video)
3 RCA Video Component Outputs (RGB
RF-Modulator Output
Rear Power Switch
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz

Audio/Video Output
Audio Output: 2 RCA Cinch (1 on LIte Model)
Video Output: 2 RCA Cinch (1 on Lite Model)
Digital Audio: 1 S/PDIF Optical (Platinum & Xtreme)
S-Video: 1 S-VIDEO
COMPONENT: 3 RCA Cinch (Xtreme)


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)


--------------------------------------------------------------------------------

The Viewsat Platinum Lite was developed to meet the demand for a lower priced unit with the same power as the Viewsat Platinum. In order to accomplish this, we took the Viewsat Platinum and trimmed the fat. The Lite does not include a card reader or Dolby output. Standard remote included. The Lite also has one set of composite outputs. Other than that, it is just as user friendly and powerful as it's big brother, the Viewsat Platinum. Check with your dealer for pricing. This unit uses Platinum firmware.

Note: See Platinum for specs.


--------------------------------------------------------------------------------

Viewsat

The long anticipated VIEWSAT PVR 7000 is finally here! It took us a little longer to release the PVR than we anticipated. We wanted to make sure that the customer would be getting a high quality product. This is a dual tuner PVR! Any standard IDE hard drive can be easily installed through the front access panel. This new addition to the Viewsat product line is sure to be a winner.

Viewsat Remote Control Programming

Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
160 MHz ST Processor
2 Tuners
Watch and record
Dual recording
Time-shifting
Front panel easy hard drive access (hard drive not included)
Compatible with up to 2000 Gig hard drive!!!
Front panel card reader (X Crypt Conditional Access System)
MP3 (MPEG-1 Layer3) decoding
Powerful trick mode supported
Playback of the selected region repeatedly
Front Panel USB 2.0 supported for fast PC interface
Dual Decoding (PIP-Picture in Picture)
160MHz ST processor
Set to Set Download (Main Program, Channel Data)
Input Frequency 950 ~2150MHz
4:3, 16:9 Letter Box
22KHz Switching Control
Various LNB Polarity Control
Supports Electronic Program Guide (EPG), Picture in Graphic (PIG)
Supports SCPC & MCPC from C / Ku-band
Fast Booting & Auto Scan
Quick Channel Changing
Max 8000 Channels (TV & Radio) Programmable
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Favorite Channel List editing
Master PIN Code Function & Parental Lock Function
Optical Output for Digital Audio
Window based S/W Download Program Supported by RS232 Serial Port
S-VIDEO Output
RF-Modulator Output
Power Switch
S/PDIF Output for Digital Audio
9 RCA Output for Video (Twin), Audio L/R (Twin), Component
Zoom function
Hardware based Blind Scan
DiSEqC 1.0, 1.1, 1.2 and USALS (1.3) Compatible
Photo Album
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)


Viewsat

--------------------------------------------------------------------------------

The Viewsat Xtreme has all of the same features and technical specs as the Platinum model below plus TRUE HARDWARE BLINDSCAN and COMPONENT VIDEO OUTPUTS! If you are serious about your FTA, then you will want this new model.
--------------------------------------------------------------------------------

(Firmware Blindscan)

The Viewsat Platinum is the Viewsat Lites big brother. This Free To Air satellite receiver includes a card reader and an fiber optic audio output. This STB also includes a universal remote.
See the specs below.


Features
Technical Specifications
Fully MPEG-2 & DVB Compliant
160 MHz Connexant Processor
16 Mb SD Ram
Input Frequency 950-2150MHz
Supports EPG, PIG
Supports SCPC & MCPC from C / Ku-band
1 LNB Input Tuner with Loop Through IF Signal
Tuner Symbol Rate : 1-45MS/s
Front panel card reader (X Crypt Conditional Access System)
Fast Booting & Auto Scan
Quick Channel Changing
Max. 4000 Channels (TV & Radio) Programmable
User Friendly 256 Colors OSD & Easy GUI
Multi OSD Language supported
Radio Channel Background Display
Favorite Channel List Programmable
Master PIN Code Function & Parental Lock Function
Universal Remote (Platinum & Xtreme)
100 Steps Volume Control
Automatic Detection of Forward Error Correction
Window based S/W Download Program Supported by RS232 Serial Port
Set to Set Download (Main Program, Channel Data)
4:3, 16:9 Letter Box & Teletext using OSD
7 Segment-4 Digit Display
5 Keys on the Front Panel (Power On/Off, Channel
Up/Down, Volume Up/Down)
Various LNB Polarity Control
22KHz Switching Control
6 RCA Output for Video, Audio L/R
Optical Output for Digital Audio (Platinum & Xtreme)
S-VIDEO Output
RF-Modulator Output
Power Switch
Power Supply
Type: SMPS
Input Voltage: AC 95V~240v 50Hz / 60Hz
Fuse Rating: 250V/T2A


Tuner
Input Frequency: 950 ~ 2150MHz
Input Signal Level: -65 ~ -25dBm
Input Impedance: 75ohm Unbalanced
Connector Type: ‘F’Type Female
LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
Channel Selection: PLL Frequency Synthesizer


Demodulator
Type: QPSK Demodulation (DVB-S)
Symbol Rate: 1 ~ 45 MS/s
Inner FEC: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
Outer FEC: Reed Solomon Coding(204,188) T=8


Video Decoder
System Decoding: MPEG-2 ISO/IEC 13818-2
Profile and Level: MPEG-2 MP@ML
Data Rate: 1 ~15 MB/s
Video Formats: 4:3(Normal) & 16:9(Widescreen)


Audio Decoder
System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
Audio Mode: Mono, Dual, Stereo, Joint Stereo
Sampling Frequency: 32, 44.1, 48 KHz

Audio/Video Output
Audio Output: 2 RCA Cinch (1 on LIte Model)
Video Output: 2 RCA Cinch (1 on Lite Model)
Digital Audio: 1 S/PDIF Optical (Platinum & Xtreme)
S-Video: 1 S-VIDEO
COMPONENT: 3 RCA Cinch (Xtreme)


RF Modulator
Modulator Output: CH3~4
Video Type: NTSC
Output Connector: “F” Type Female
Ant. IN Connector: “F” Type Female
8. Serial Data Interface
Signal: RS-232, Max. 115200 bps
Connector Type: 9 Pin D-Sub (male)

Slim Size, Low Heat, Low Power, Low Noise , Light Weight
• Soft&Stable Forward and Backward in Various speed
• Easy & Simple data transfer(PVR HDD<->PC)
• Front Cartridge Type (2.5' HDD)
• Fast Cutting of the recorded memory
• Power Scan:Fully Automated Satellite Scanning
• 10,000 Channels TV& Radio Programmable
• Multi Windows (4,9,16 pictures)
• 2 Tuner Inputs
• 100 Satellite, 10,000 channels programmable
• 2 Common Interface Slots
• Real Time Clock
• USB V 2.0
• PIG / PIP
• Smart Search
• 60GB Mini Removable HDD (36 Hours of Recording)
• Conax Embedded Card Reader

General Features
- EPG (Electronic Program Guide)
- Full Compliant of MPEG-2 Digital & DVB broadcasting
- 950 - 2,150 MHz input Frequency (IF Loop Throughout)
- Variable Input Symbol Rate (1-45 Msps)
- Multi Language OSD
- Automatic PAL/NTSC Conversion
- Fast Channel Change
- 5,000 Channels TV & Radio Program
- Universal Remote
- Flexible reception of SCPC & MCPC from C/Ku-Band Satellites
- S/PDIF (Digital Audio or Dolby AC3 Stream out)
- Timer Function (Automatic Turn On/Off by Setting Function)
- 256 Colors (Graphic User Interface) Number
- PIG (Picutre in Graphic)
- 5 Favorite List & Unlimited Programs per each
- Powerful Channel Editing Function
- Sorting: Alphabetic, Satellite, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip
- Manual PID / Satellite & TP / Network Scan
- Smart Search
- Satellite Scan - Simultaneous Scan with 4 Satellites
- DiSEqC 1.3 Control Compatible (STAB USALS)
- Capable of Setting the Frequency for SMATV System
- Software Upgrade via RS-232C (Receiver to Receiver, PC to Receiver)

EPG (Electronic Program Guide)

• Full Compliant of MPEG-2 Digital & DVB broadcasting

• 950-2,150 MHz input Frequency (IF Loop Throughout)

• Variable Input Symbol Rate (1-45 Msps)

• Multi Language OSD

• Automatic PAL/NTSC Conversion

• Fast Channel Change

• 5,000 Channels TV & Radio Program

• Universal Remote Ready

• Flexible reception of SCPC & MCPC from C/Ku-Band Satellites

• S/PDIF (Digital Audio or Dolby AC3 Stream out)

Manual

• Timer Function (Automatic Turn On/Off by Setting Function)

• 256 Colors (Graphic User Interface) Number

Viewsat Remote Control Manual

• PIG (Picture In Graphic)

• 5 Favorite List & Unlimited Programs per each

• Powerful Channel Editing Function
- Sorting : Alphabetic, Satellite, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip

• Manual PID / Satellite & TP / Network Scan

• Smart Search

• Satellite Scan – Simultaneous Scan with 4 Satellites

• DiSEqC 1.3 Control Compatible (STAB USALS)

• Capable of Setting the Frequency for SMATV System

Viewsat Remote Control Manual

• Software Upgrade via RS-232C (Receiver to Receiver, PC to Receiver)

Basic Feature
Smart Search
Satellite Scan - Simultaneous Scan with 4 Satellites
5000 Channels TV & Radio program (TV Ch. 4,000, Radio Ch. 1,000)
5 Favorite List
2 Days EPG (Electronic Program Guide)
Full Compliant of MPEG-2 Digital & DVB broadcasting
950-2, 150 MHz input Frequency (IF Loop Throughout)
Variable Input Symbol Rate (1-45 Msps)
Multi language OSD
Automatic PAL/NTSC Conversion
Flexible receiption of SCPC & MCPC from C/Ku-Band Satellites
S/PDIF (Digital Audio or Dolby AC3 Stream out)
Timer Function (Automatic Turn On/ Off by Setting Function)
Component (Y/ Pb/ Pr) Video Output
S-Video
256 Colors (Graphic User Interface) Number
PIG (Picture In Graphic)
Powerful Channel Editing Function
- Sorting: Alphabetic, Satellite, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip
Manual PID/ Satellite & TP/ Network Scan
Diseqc 1.2 & USALS Compatiable
Comparable of Setting the Frequency for SMATV System
Software Upgrade via RS-232C (Receiver to Receiver, PC to Receiver), Null Modem Cable
UHF Ready

Features

Viewsat Remote Control Manual

MPEG-? Digital & Fully DVB Compliant
Auto DiSEqC Scan
DiSEqC Control 1.0, 1.2 compatible
Simple Satellite Scan
Fast Multi-Satellite Search
Blind Search (Power Scan) & Network Scan
4, 13 Multi-Picture Screen
3200 Channels Programmable
Fast OSD Respond
User Friendly OSD (On Screen Display) with 256 Color & Easy GUI
Channel Sorting by Alphabet, Transponder
Channel Control by Delete, Skip, Lock, Move and Favorites
Powerful EPG Support
Zoom function
Parental Lock / Installation Lock / Receiver Lock
Various Languages (OSD & Menu)
English, Spanish, French, German l
Background changing function by User with supported program
Software & Channel Database Upgrade via by RS232 Port
Set to Set Download (Main s/w, Channel Data, etc.)
Quick Channel Changing
Favorite Channel List Programmable
Games
Smart Card Reader Interface (Optional)
Universal Remote Control (Optional)

Features

SW Upgradeable via INTERNET or RS-232C cable
MPEG-II Digital & Fully DVB Compliant
Auto Diseqc Scan
DiSEqC Control 1.0, 1.2 compatible
Simple Satellite Scan
Fast Multi-Satellite Search
Blind Search
4, 13 Multi-Picture Screen
3200 Channels Programmable
Fast OSD Respond.
OSD (On Screen Display) with 256 Color
Channel Sorting by Alphabet, Transponder and CAS
Channel Control by Delete, Skip, Lock, Move and Favorites.
Teletext Support
Zoom Function
Parental Lock/ Installation Lock/ Receiver Lock
Various Languages (OSD & Menu)
English, Spanish, French, German
Xcrypt software support
Powerful EPG
TP CH auto update

Copyright © 2000-2008
